Remove the trim from the side panel

Preliminary work

• Refer to PARTIALLY REMOVING THE FRONT WHEEL ARCH TRIM (DOOR SILL) .
• Refer to REMOVING THE DOOR SILL TRIM PANEL .

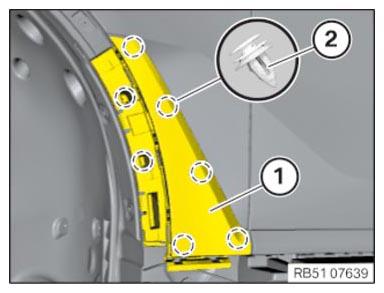

• Release the trim on the side panel (1)  from the clips (2)  using the special tool 0 496 569 (00 9 325) and remove from the side panel  .
