Installing the speaker in the headlining

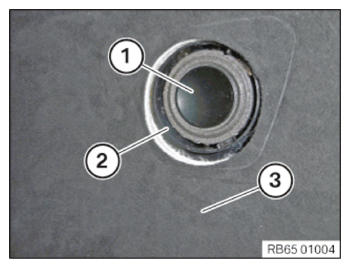

• Insert the speaker (1) in the holder (2) on the headlining (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

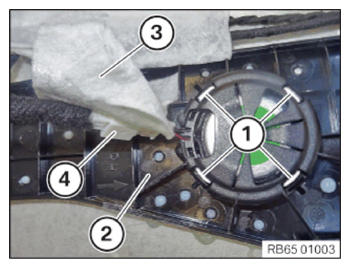

• Connect connectors (4) and lock.
• Close the insulation (3).
• Snap-in the locks (1) on the holder (2) for the speaker.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the speaker trim on the headlining

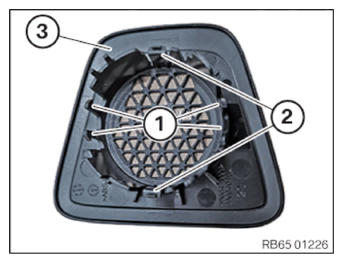

• The locks (1) and (2) must not be damage; replace the speaker trim (3) if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

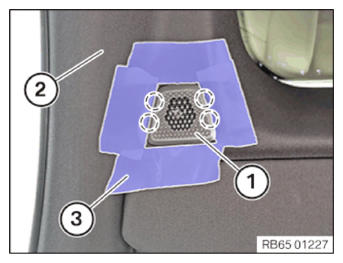

• Insert the speaker trim (1) in the headlining (2) and clip it in correctly at the marked points.
• Remove the yellow plastic adhesive tape (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HEADLINING (LOWERED) .
• Refer to INSTALLING REAR INTERIOR ROOF LIGHT .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING D-PILLAR TRIM PANEL ON LEFT AND RIGHT .
