When replacing the rear door trim panel

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING REAR DOOR TRIM .

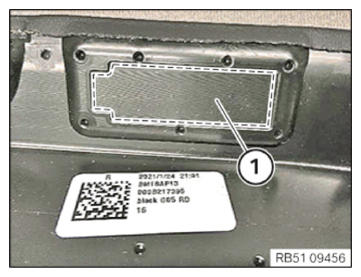

Make a cutout for the footwell light.
Cut out the prepunched area (1) along the dotted line with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the rear power window switch

Unlock locking pin (1) and pull out from the door trim panel (3).
Unlock and disconnect connector (2).
Remove the power window switch with the switch trim (4) from the door trim panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the Bowden cable for the inner door opener

Release the locking mechanism (1) and remove the Bowden cable (2) toward the top.
The Bowden cable will thread itself out.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the speaker cover from the door trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Saw off all welding pins on the speaker cover (1) along the molding (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove welding remnants on door trim panel with a scalpel.
Install the speaker cover (1) and lock on the detents (2).
Welding pins must not protrude from the door trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Screw in and tighten the repair screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Decorative strip/speaker trim to door trim panel
screw	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install the decorative strip on the door trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the decorative strip (1) and clip it in at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the decorative strip (1).
Screw in the repair screws (1) and tighten.

TIGHTENING TORQUE SPECIFICATIONS

Decorative strip/speaker trim to door trim panel
screw	Tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing inner rear door opener

NOTE: Description is for left component only. Procedure on the right side is identical.

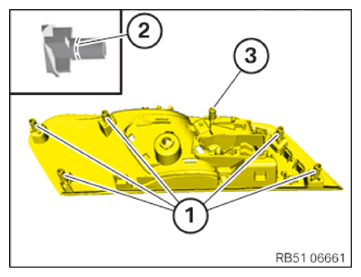

Saw off the welding pins (1) on the inner door opener along the molding (2).
Do not cut off the welding pin (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove welding remnants on door trim panel with a scalpel.

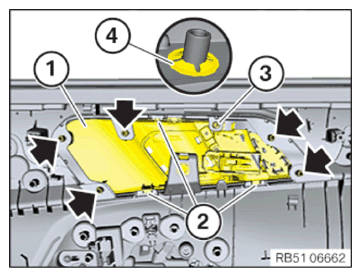

Install the inner door opener (1) and lock on the snap-in lugs (2).

NOTE: Welding pins must not protrude from the door trim panel.

Screw in and tighten the repair screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Inner door opener to door trim panel
screw	Tightening torque	2.3 Nm

Fasten the welding pin (3) with the locking washer (4).

Installing the Bowden cable for the inside door opener

Push the inner door handle in closed direction.
Engage the Bowden cable (2) into the lock (1) towards the front/bottom.
The Bowden cable (2) must be correctly positioned in the provided holders.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the rear power window switch

Position the power window switch with switch trim (4) and install in the door trim panel (3).
Install the locking pin (1) in the door trim panel (3) and lock.
Connect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remount the wiring harness on the new door trim panel.

Follow-up work

Refer to INSTALLING REAR DOOR TRIM PANEL .
