Install trunk lid lock left or right
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

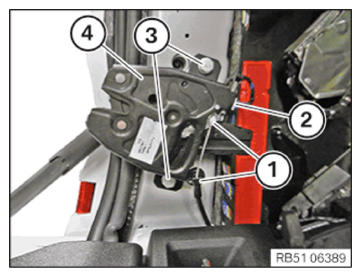

- Install the tailgate lock (4).
- Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONS
| Trunk lid lock | ||
|---|---|---|
| Screw | tightening torque | 19 Nm |
- Connect connector (2).
- Attach the Bowden cable (1).
Follow-up work
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT (ALL EQUIPMENT VERSIONS) .
- Refer to INSTALLING BACKREST SIDE SECTION .
- Refer to INSTALLING THE BOTTOM LEFT C-PILLAR TRIM PANEL (3RD SEAT ROW) .
- Refer to INSTALLING THE REAR DOOR SILL COVER STRIP (ELECTRICAL REAR SEAT) .
- Refer to INSTALLING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to INSTALLING THE FLAP IN LEFT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING ROLLER COVER FOR LUGGAGE COMPARTMENT .
