Installing the intake pipe of the engine ventilation line
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

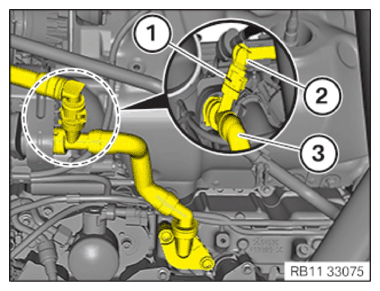

- Position the intake pipe (2).
- Connect and lock intake pipe (2) and engine ventilation line (3).
- The retaining clip (1) must audibly engage.

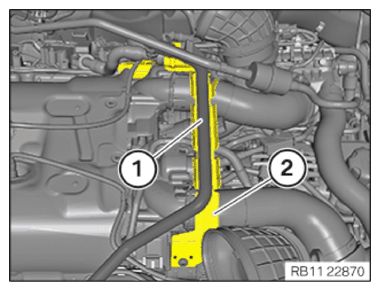

- Clip in the intake pipe (1) in the holder (2).

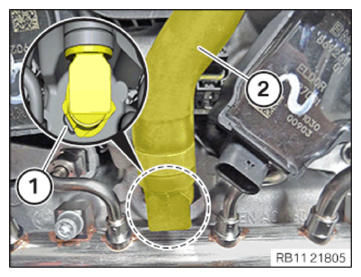

- Connect and lock the intake pipe (2).
- The retaining clip (1) must audibly engage.
Follow-up work
- Refer to INSTALLING THE SOUND INSULATION OF THE INJECTORS, RIGHT .
- Refer to INSTALLING THE RIGHT INTAKE SILENCER BRACKET .
- Refer to INSTALLING THE RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
