Installing all gates

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Have the special tool 2 359 089 ready.

Courtesy of BMW OF NORTH AMERICA, INC.
Clean contact surfaces (1) and (2) off oil, grease and dirt.

Courtesy of BMW OF NORTH AMERICA, INC.
Fit the gate (2) and hand-tighten the screw (1).
Make sure the intermediate lever (3) is in the correct installation position.

Courtesy of BMW OF NORTH AMERICA, INC.

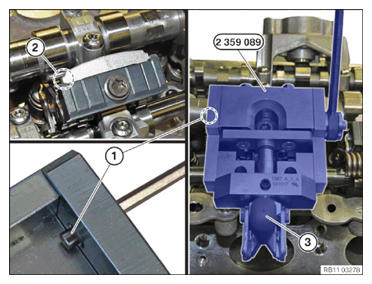

Position the special tool 2 359 089 on the cylinder head.
Pre-tension the gate with the lever (3).
Bring the screw (1) onto the contact surface in the area (2).
Make sure that the special tool 2 359 089 does not rotate during this process.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the gate with the lever (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the special tool 2 359 089 rests flat against the cylinder head (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Press the special tool 2 359 089 in arrow direction onto the cylinder head. Simultaneously tighten the screw (1).
TIGHTENING TORQUE SPECIFICATIONS

Gate to bearing bracket

M7 tightening torque
20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check the conventional gauge (1) in the area (A) for the correct gap dimension.

TECHNICAL DATA SPECIFICATIONS

Gap dimension between gate and bearing bracket
	Gap dimension A	0.03 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that the gate (1) lies correctly on the bearing bracket (2).
The gate (1) is installed correctly in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the gate (1) lies correctly on the bearing bracket (2).
The gate (1) is not installed correctly in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
Repeat the process for all gates.

Gate to bearing bracket
M7	tightening torque 20 Nm
