Installing the engine wiring harness for sensor system 2

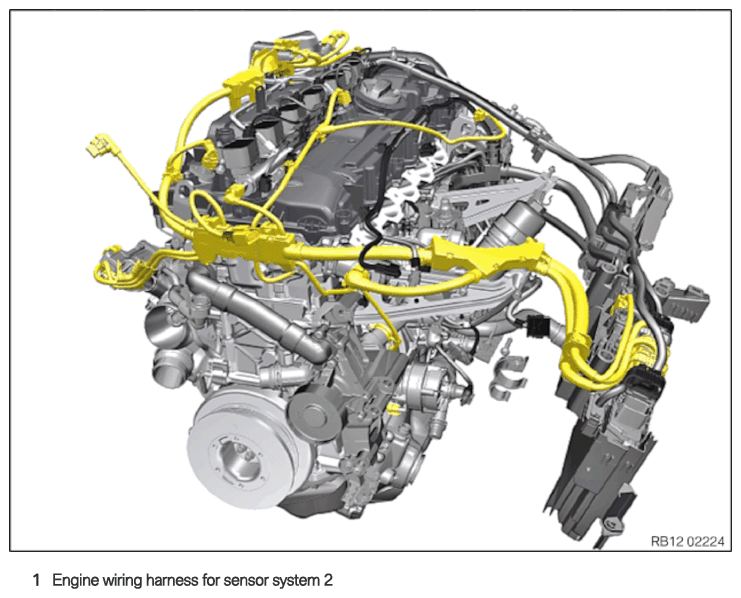

Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.
- Guide in and install the engine wiring harness (1)
for sensor system 2.
- Guide in and install the engine wiring harness (6)
for sensor system 2.
The locks (arrows) must engage audibly.
- Feed in differential pressure sensor (5) and position.
- Tighten down screw (4) .
TIGHTENING TORQUES SPECIFICATION
| Differential pressure sensor to holder | ||
|---|---|---|
| TS6X18 | Tightening torque | 3.5 Nm |
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Connect the connector (2)
to the engine wiring harness (6)
for sensor system 2 and lock.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Threading in and installing engine wiring harness (2) for sensor system 2.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Threading in and installing engine wiring harness (5) for sensor system 2.
- Ensure that the locking mechanisms (4) engage audibly.
- Tighten nut (3) .
TIGHTENING TORQUES SPECIFICATION
| Front ground cable to cylinder head | ||
|---|---|---|
| M6 | tightening torque | 8 Nm |
- Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and position auxiliary coolant pump (4) .
- Feed in and position retaining bracket (3) .
- Tighten nut (2) .
TIGHTENING TORQUES SPECIFICATION
| Electric coolant pump to holder | ||
|---|---|---|
| M6 | tightening torque | 8 Nm |
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Guide in and install the engine wiring harness (4) for sensor system 2.
- Secure clamps (3) .
- Connect connector (1)
with the electric coolant pump (2)
and lock.
The connector (1) must engage audibly.
- Fasten the cable bracket (1)
to the bracket (2)
.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE CLEAN AIR PIPE AND THE RESONATOR .
- Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
- Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
- Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
- Refer to INSTALLING THE TENSION STRUT ON THE RIGHT SHOCK TOWER .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
