Install tension strut on left and right shock tower
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the tension strut on the right shock tower
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

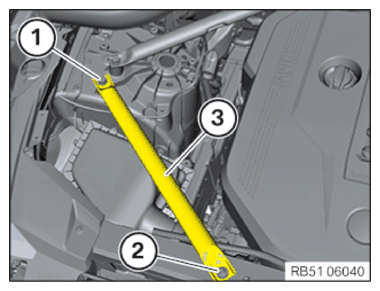

- (3) Install tension strut on shock tower .
- Replace the screw (1)
.
Parts: Screw
- Tighten screw (1) with the special tool 0 490 504 (00 9 120) TIGHTENING TORQUES SPECIFICATION
Tension strut to shock tower M10x55 screw Replace screws Joining torque 56 Nm Angle of rotation 90° - Tighten down screw (2)
.TIGHTENING TORQUES SPECIFICATION
Tension strut on the rear cross connection M8x30 screw tightening torque 28 Nm Repairing the thread on the strut tower
- Repair the damaged thread with the Helicoil thread insert.
Consumable Helicoil thread insert M10x25 mm 33 30 6 782 756
