Installing the crankshaft sensor

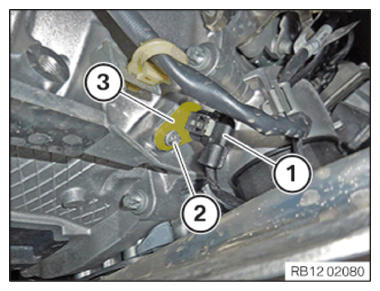

- Guide in and install crankshaft sensor (3) into the transmission housing and install.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Crankshaft sensor on transmission housing | ||
|---|---|---|
| M6x16 | Tightening torque | 8 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
