Installing underbody protection at rear
Installing underbody protection at rear

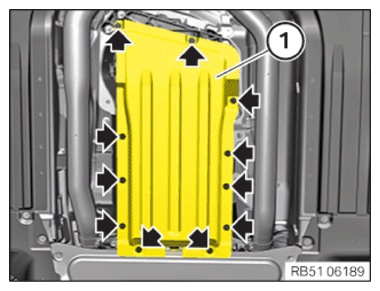

Insert underbody protection
(1)
and position correctly.
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
Undershield/frame
Hexagon screw
tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
