Fit the roof lining

Precondition

The front seats have been fully adjusted towards the bottom.

The front seat backrests have been fully adjusted towards the rear.

The rear seat backrest is folded down toward the front.

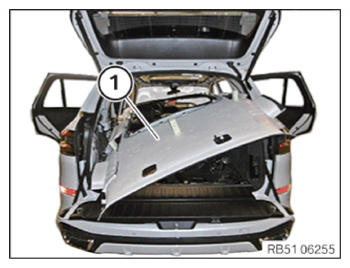

• Install the headlining (1) in the vehicle as shown with two support persons.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Buckling of the headlining must be avoided. Support the headlining at the front and back  .
• Feed in the headlining (1) on the relative edge protection.
• Clip headlining (1) to the clips (2).

  Make sure that the headlining (1) is correctly positioned on the tailgate seal.

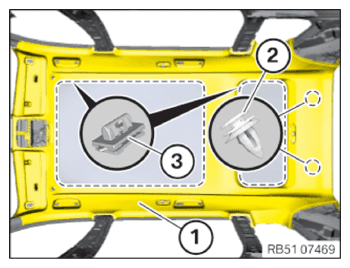

• Clip in the headlining (1) in the area of the dotted line on the sliding/tilting sunroof case and the clamps (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

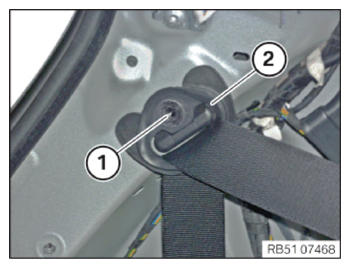

• Install the seat belt guide loop (2) and tighten the screw (1) on the D-pillar at left and right.
  TIGHTENING TORQUE SPECIFICATIONS



  Seat belt guide loop at the rear to body
  Screw
  	Tightening torque	38 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

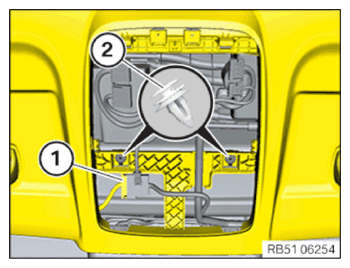

• Clip headlining to the clips (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

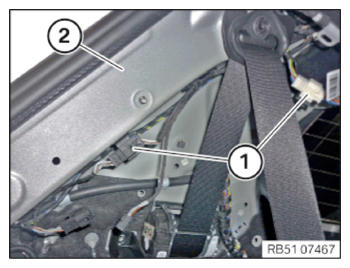

• Connect the connector (1) in the D-pillar (2) area at left and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

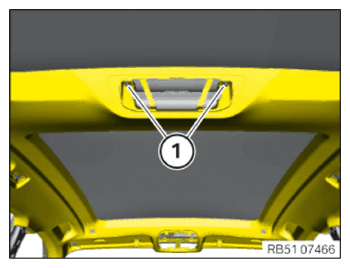

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Headlining
  Screw 4.8X13
  	tightening torque	3.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

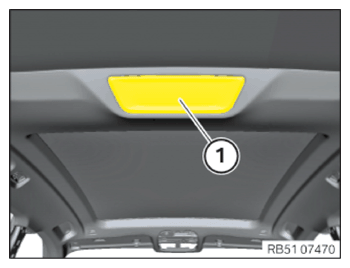

• Install the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

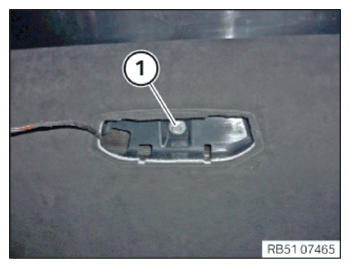

• Tighten the screw (1) underneath the rear interior roof light.
  TIGHTENING TORQUE SPECIFICATIONS



  Headlining
  Screw 4.8X13
  	tightening torque	3.0 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR INTERIOR ROOF LIGHT .
• Refer to INSTALLING LEFT AND RIGHT REAR SPEAKER HOLDER .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT TRIM PANEL ON THE SIDE PANEL .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
• Refer to INSTALLING THE SIDE TRIM PANEL UPPER SECTION AT REAR LEFT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING D-PILLAR TRIM PANEL ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT HAND SEAT .
