Installing tail light onto side panel at right

NOTE: Description is for left component only. Procedure on the right side is identical.

Check

NOTE: TECHNICAL INFORMATION
The thread is a left-hand thread.

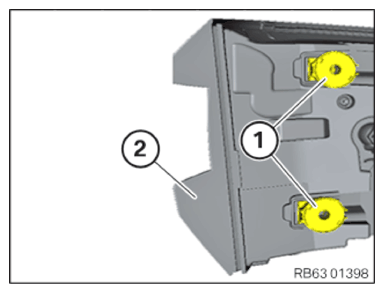

Both adjusting elements (1) on the rear light (2) must be in the screwed in position.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Adjusting elements (1) are not in the screwed in position.

Measure

Connect the connector (1) to the tail light on the side panel (2).
The connector (1) must engage audibly.
Lock the lock in arrow direction (3).

Courtesy of BMW OF NORTH AMERICA, INC.

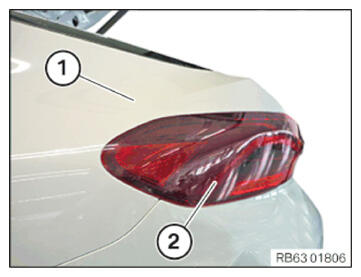

Position the tail light on the side panel (2) on the (1) side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

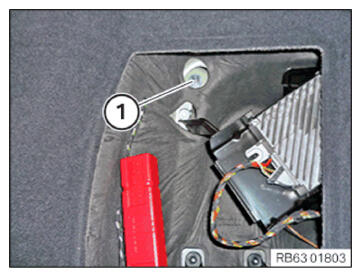

Position the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

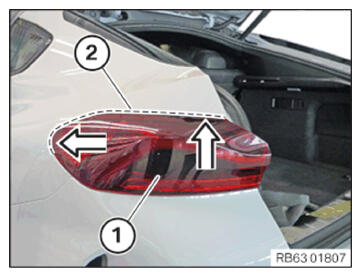

Position tail light on the side panel (1) toward the front - at top.
Move the contact surfaces (2) of the tail light on the side panel (1) upwards to contact.
Hold the tail light on the side panel (1) in position.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

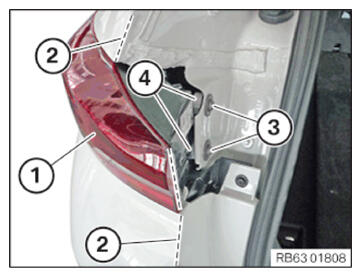

Position screws (3).
Align the tail light on the side panel (1) to the connection line (2).
The alignment is made via the threaded inserts (4) on the rear light on the side panel (2).
If applicable, correct the position of the rear light on the side panel (1) by twisting the threaded inserts (4).
Tighten the screws (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
