Install cover of the seat belt finisher strip
Install cover of the seat belt finisher strip
NOTE:
Description is for left component only. Procedure on the right side is identical.

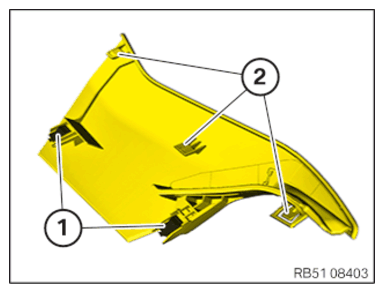

Check retaining clip (1) and detents (2) for damage.
The retaining clips and detents must be undamaged and none can be missing.
Courtesy of BMW OF NORTH AMERICA, INC.

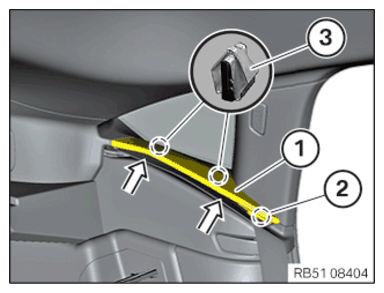

Position and clip in the seat belt finisher strip trim (1) to the retaining clips (3) and detents (2).
Courtesy of BMW OF NORTH AMERICA, INC.
