Installing the right-hand charge air cooler

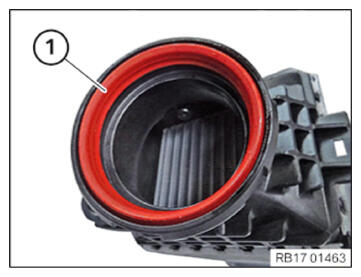

Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

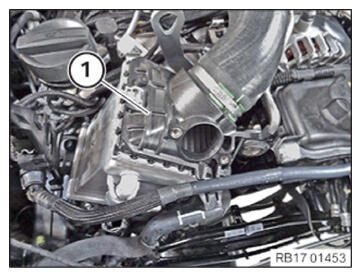

Insert and install the right-hand charge air cooler (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position the charge air cooler (1) as shown.

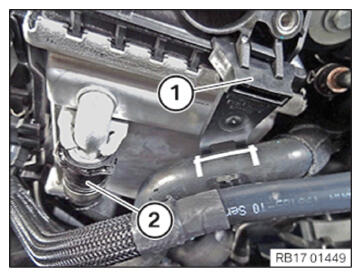

Connect and lock the coolant line (2).
The coolant line (2) must audibly engage.

Courtesy of BMW OF NORTH AMERICA, INC.

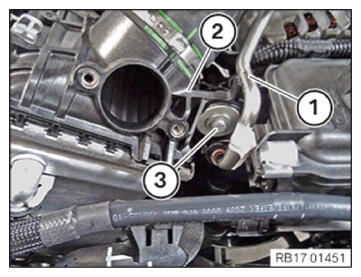

Attach the coolant line (1) to the right-hand charge air cooler (2).

Tighten down screw (3).

TIGHTENING TORQUE SPECIFICATIONS

Charge air cooler to holder
M6x35	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

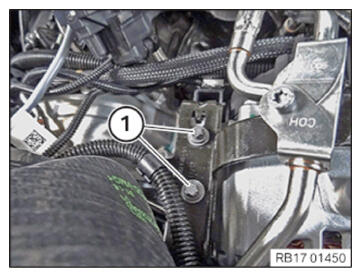

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Alternator to cylinder head
M8x85	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

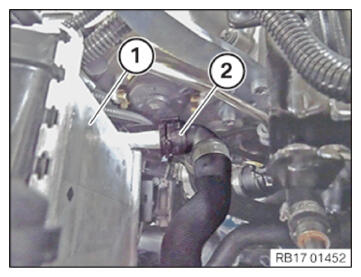

Connect and lock the coolant line (2).
The coolant line (2) must audibly engage.
Insert and install the holder (1).
The holder (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.
Lock clamp (2).
The clamp (2) must engage audibly

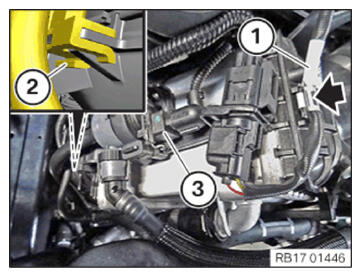

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

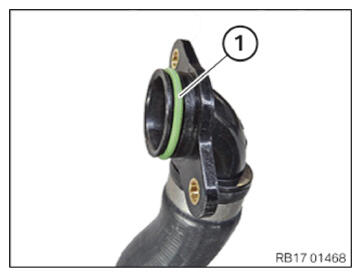

Check sealing ring (1) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

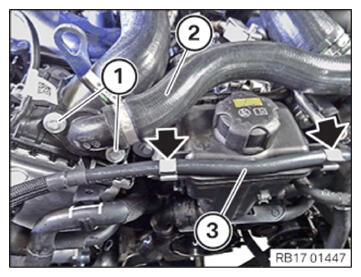

Attach the tank vent line (3) to the clamps (arrowed).
Insert and install charge air line (2).

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Connecting hose to charge air cooler
Hexagon screw M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the tank vent valve with the bracket (3).
Ensure that the locking mechanism (2) engages audibly.

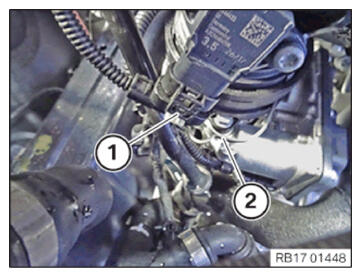

Fasten the cable (1) using the clamp (arrowed).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
