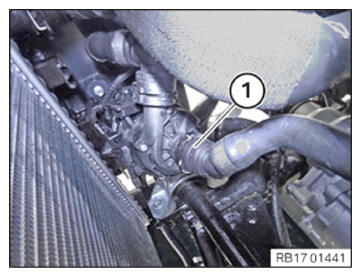

Connecting the coolant hose to the auxiliary coolant pump

• Connect coolant hose (1) to the auxiliary coolant pump and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT AND LEFT UNFILTERED-AIR DUCT .
• Refer to INSTALLING BOTH INTAKE FILTER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
