Removing automatic transmission (all-wheel drive vehicle) (GA8HP76Z)

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: RISK OF DAMAGE
Damage to engine block.
Serious damage to the engine block and transmission due to damaged and corroded screws.

It is imperative that protruding threads of the transmission bolts are checked for corrosion and damage prior to removal.
It is imperative that all rust is removed from corroded threads and that they are cleaned prior to removal.
Replace rusted and damaged bolts.

NOTE: RISK OF DAMAGE
Damage of components in the engine compartment.
When removing the transmission, the tilting of the engine may cause damage to components in the engine compartment.

Before removing the transmission: Support engine.
Protect engine from tipping movements.
Follow the specifications in the repair instructions.

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved transmission oil.
Check the transmission oil level after completing the repair.

Preliminary work

Refer to DEACTIVATING THE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THRUST FIELD .
Refer to REMOVING THE RIGHT REAR TENSION STRUT .
Refer to REMOVING THE LEFT AND RIGHT REAR DIFFUSER .
Refer to REMOVING EXHAUST SYSTEM .
Refer to REMOVING THE HEAT SHIELDS .
Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
Refer to PARTIALLY LOOSENING THE PROP SHAFT .

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: RISK OF DAMAGE
Damage to engine block.
Serious damage to the engine block and transmission due to damaged and corroded screws.

It is imperative that protruding threads of the transmission bolts are checked for corrosion and damage prior to removal.
It is imperative that all rust is removed from corroded threads and that they are cleaned prior to removal.
Replace rusted and damaged bolts.

NOTE: RISK OF DAMAGE
Damage of components in the engine compartment.
When removing the transmission, the tilting of the engine may cause damage to components in the engine compartment.

Before removing the transmission: Support engine.
Protect engine from tipping movements.
Follow the specifications in the repair instructions.

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved transmission oil.
Check the transmission oil level after completing the repair.

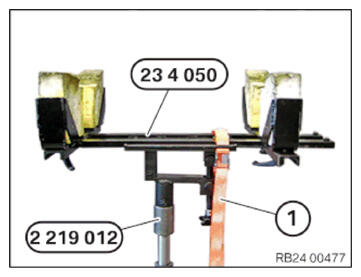

Remove the special tools 0 495 498 (23 4 050) and 2 219 012 from the transmission.
Secure the transmission with the luggage strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

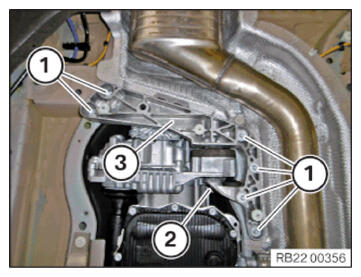

Loosen screws (1).
Loosen screw (2).
Remove the transmission cross member (3).

Courtesy of BMW OF NORTH AMERICA, INC.

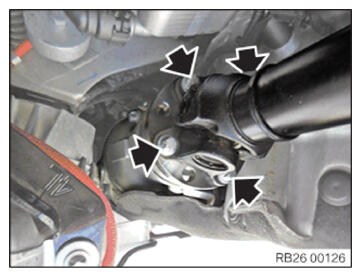

Remove screws (arrows).
Secure the prop shaft on the transmission with a belt.

Courtesy of BMW OF NORTH AMERICA, INC.

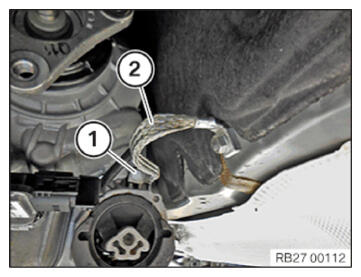

Unscrew the bolt (1) and disconnect the ground strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

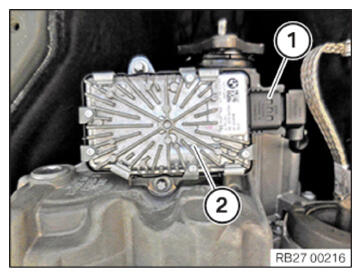

Disconnect connector (1) from transfer box control unit (longitudinal torque distribution) (2).

Courtesy of BMW OF NORTH AMERICA, INC.

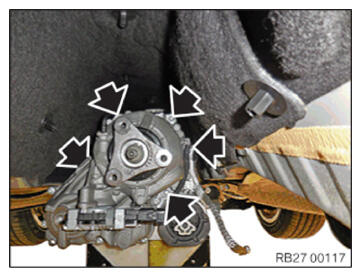

Unscrew the screw connection (arrows) of the transfer box.
Carefully detach transfer box with front prop shaft.
It is imperative to prevent damage to the surface coating!

Courtesy of BMW OF NORTH AMERICA, INC.

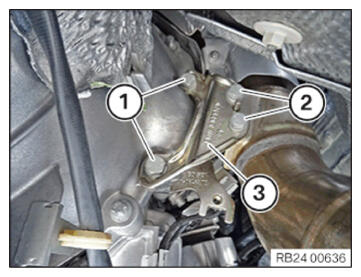

Loosen screws (1).
Loosen screws (2).
Remove the exhaust bracket (3).

Courtesy of BMW OF NORTH AMERICA, INC.

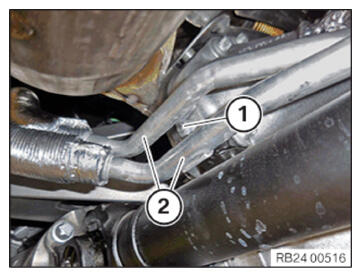

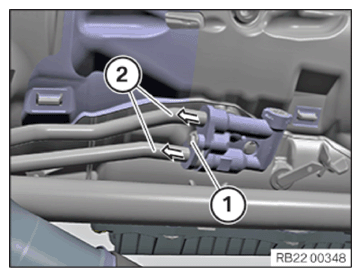

Loosen screw (1).
Disconnect hydraulic lines (2) to transmission oil cooler

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Disconnect hydraulic lines (2) to transmission oil cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

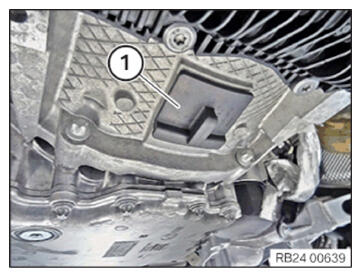

Remove sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
Crank the engine on the vibration damper in the direction of rotation until the screw (1) is visible in the recess.
Release all 6 screws (1) on the torque converter.

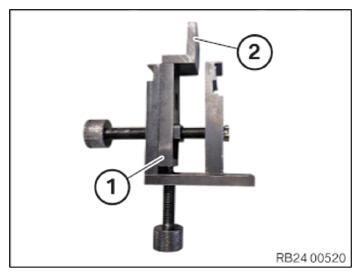

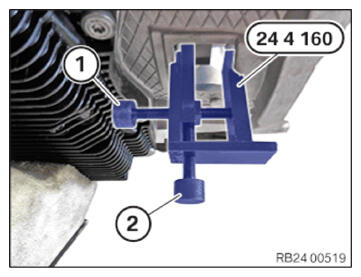

Prepare special tool 0 494 451 (24 4 160) (1) with the shaped part 0 494 622 (24 4 164) (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert special tool 0 494 451 (24 4 160) into the recess of the transmission housing and apply slight tension using the screw (1).
Screw the bolt (2) in to the stop.
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Notes on mechatronics are a fundamental requirement for these repair instructions and must be complied with at all times.

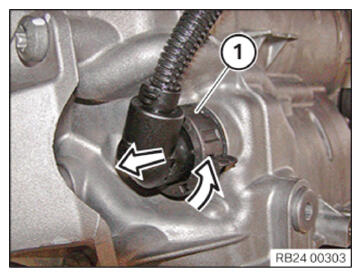

Unlock connector (1) by turning and detach.
Do not tap pins.
Loosen all cable clips.

Courtesy of BMW OF NORTH AMERICA, INC.

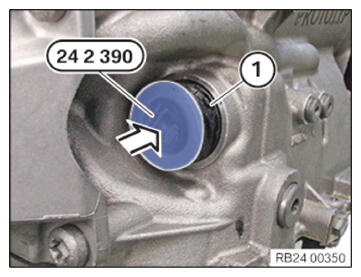

Insert the special tool 0 494 213 (24 2 390) in the sealing sleeve (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

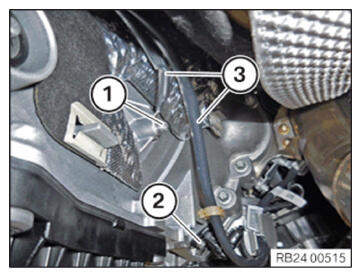

Loosen screw (1).
Release the screw (2) and remove the sensor.
Lay lines (3) to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Support the engine.

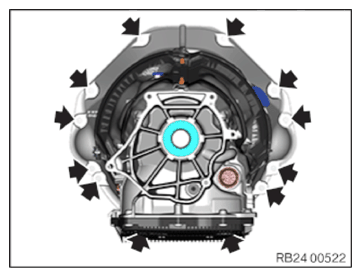

Loosen the screws (arrows) and remove the transmission.
