Remove thrust field

NOTE: TECHNICAL INFORMATION
Secure component against falling.

NOTE: TECHNICAL INFORMATION
Driving without thrust field is not permissible.

Loosen screws (1) to (3).

Courtesy of BMW OF NORTH AMERICA, INC.

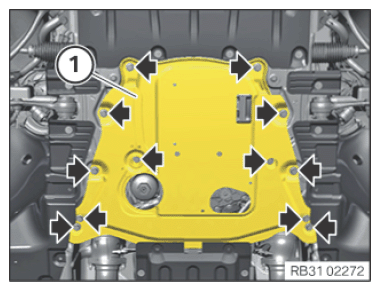

Version A (N63):
Remove screws (arrows).
Guide out and remove stiffening panel (1) from wheel arch trim panels.

Courtesy of BMW OF NORTH AMERICA, INC.

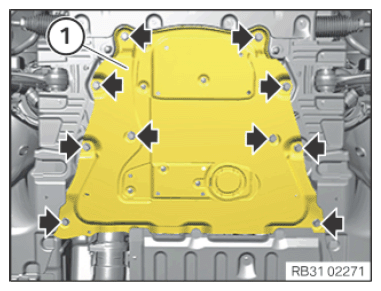

Version B (S6863):
Remove screws (arrows).
Guide out and remove stiffening panel (1) from wheel arch trim panels.

Courtesy of BMW OF NORTH AMERICA, INC.
