Installing the guide tube for the oil dipstick

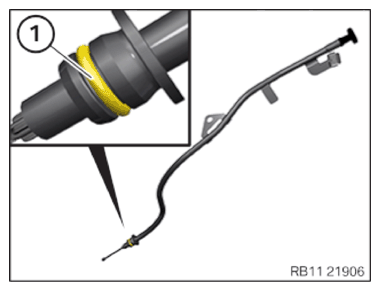

• Replace sealing ring (1).

  Parts:  Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

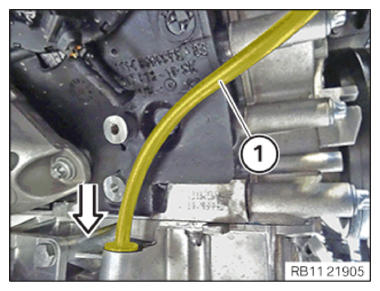

• Feed in the guide tube for the oil dipstick (1) in the arrow direction and install.
• Install the oil dipstick.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER .
• Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT AND LEFT UNFILTERED-AIR DUCT .
• Refer to INSTALLING BOTH INTAKE FILTER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
