Install fan cowl

Remove guard for the cooler fins

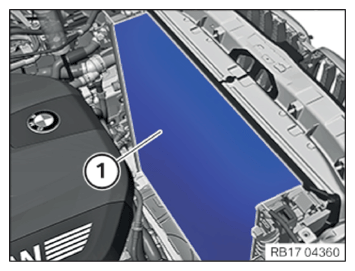

• Remove guard (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

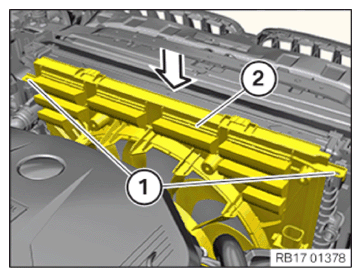

• Maneuver the fan cowl (2) in the arrow direction and install it.

  The locks (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

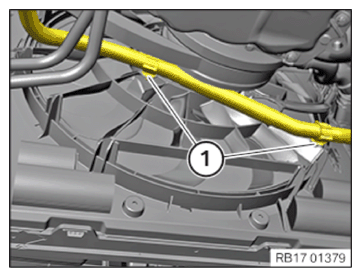

• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

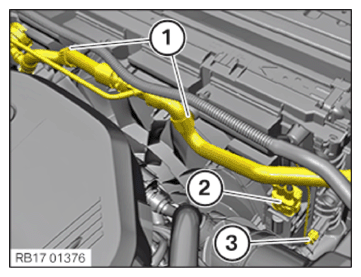

• Secure clamps (1).
• Connect connectors (2) and lock.

  The connector (2) must engage audibly.

  NOTE: The following step(s) must be performed if the specified component(s) is/are installed.
• Connect connectors (3) and lock.

  The connector (3) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
