Installing the oil-level sensor

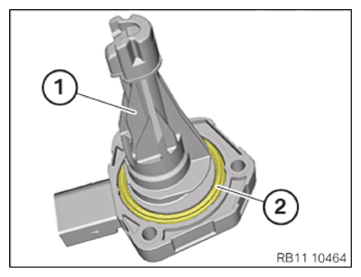

- Replace seal (2) from oil-level sensor (1).
- Parts:
Seal

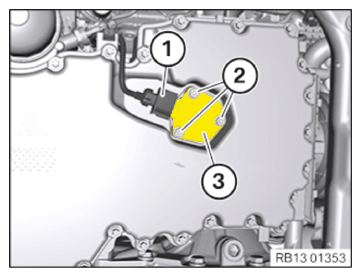

- Insert and install the oil-level sensor (3).
- Tighten nuts (2).TIGHTENING TORQUE SPECIFICATIONS
Oil level sensor to oil sump M6 hexagon nut Joining torque 2 Nm Tightening torque 8.5 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.
Follow-up work
- Refer to TIGHTENING THE OIL DRAIN PLUG .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to FILLING ENGINE OIL .
- Refer to INSTALLING THE OIL FILLER CAP .
- Refer to CHECKING ENGINE OIL LEVEL .
