Install adapter cable of the oil-level sensor

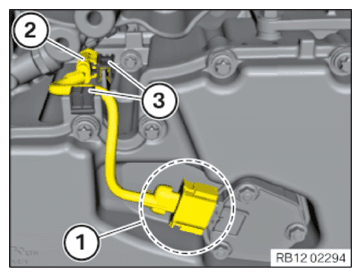

• Connect connectors (2) and lock.
• Position the plug connection (2).
• Lock the plug connection (2) downwards with the snap-in lug.
• Connect connectors (1) and lock.
• Fix wiring harness fasteners (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

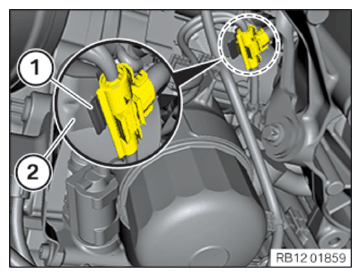

• Secure wiring harness section (1) in the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STIFFENING PLATE .
