Removing fuel delivery line

Preliminary work

• Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING UPPER CROSS CONNECTION .
• Refer to REMOVING THE FRONT-END STRUT .
• Refer to REMOVING THE REAR TOP CROSS CONNECTION .
• Refer to REMOVING THE INTAKE FILTER HOUSING ON THE LEFT .
• Refer to REMOVING THE LEFT INTAKE SILENCER BRACKET .
• Refer to REMOVING THE LEFT UNFILTERED-AIR DUCT .
• Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
• Refer to REMOVING THE RIGHT INTAKE SILENCER BRACKET .
• Refer to REMOVING OIL FILLER NECK .
• Refer to REMOVING THE RIGHT UNFILTERED-AIR DUCT .
• Refer to REMOVING THE FAN COWL .
• Refer to REMOVING DRIVE BELT .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE WHEEL ARCH COVER AT THE BOTTOM FRONT LEFT AND BOTTOM RIGHT .
• Refer to DRAINING THE COOLANT FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to DRAINING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to REMOVING LEFT AND RIGHT CHARGE AIR COOLER .
• Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
• Refer to FASTENING THE COOLANT LINE BETWEEN THE COOLANT PUMP AND THE HEAT EXCHANGER .
• Refer to REMOVING THE IGNITION COIL FROM CYLINDER 1 .
• Refer to REMOVING THE IGNITION COIL FROM CYLINDER 5 .
• Refer to RELEASING THE COOLANT LINE FOR THE EXHAUST TURBOCHARGER .

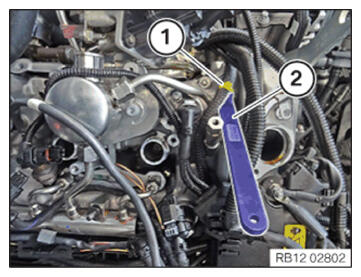

• Unclip the positive battery cable at the clip (1) using standard wedge (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip the tank vent line (1) from the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip wiring harness mounting (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove cover upwards (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Release the nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Put the holder (2) of fuel supply line to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Put the holder (2) of fuel supply line to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip wiring harness mounting (2).
• Release the nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Loosen screw (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1) and disconnect.
• Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip wiring harness mounting (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the nut (2).
• Loosen screw (1).
• Set aside the fuel supply line (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the retaining clip (1).
• Unlocking and disconnect the fuel hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Feed out and remove fuel supply line.

Courtesy of BMW OF NORTH AMERICA, INC.
