Installing rail on bank 2

• Position high pressure rail.

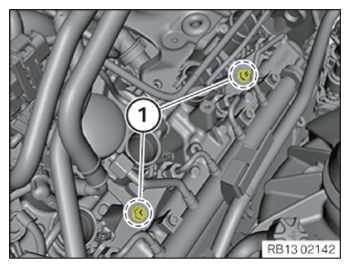

• Manually tighten the screws (1) as far as they will go.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Manually tighten the screws (1) as far as they will go.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (2) on the high pressure pump with the special tool 0 491 277 (13 5 020) .
  TIGHTENING TORQUE SPECIFICATION



  Fuel supply line/rail to high pressure pump
  Nut	tightening torque	30 Nm

• Tighten nuts (1) on the injectors with the special tool 0 495 908 (37 1 150)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  High-pressure rail to injectors
  Nuts	Tightening torque	25 Nm

• Position high pressure rail.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Rail to cylinder head cover
  M6x25 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Hold-down device to cylinder head cover
  screw	Tightening torque	13 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position ground cable (2).
• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE IGNITION COILS OF CYLINDER BANK 2 .
• Refer to INSTALLING THE LEFT INTAKE SILENCER BRACKET .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
