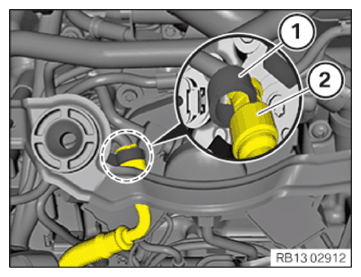

Installing the fuel line

• Position the fuel line (2).
• Connect the fuel line (2).
• The retaining clip (1) on the fuel line (2) should audibly lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

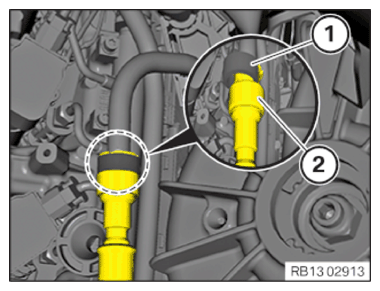

• Connect the fuel hose (2).
• The fuel hose (2) must lock audibly onto the retaining clip (1).
• Remove rag.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
