Installing the head-up display

• Connect the associated connector with the head-up display.

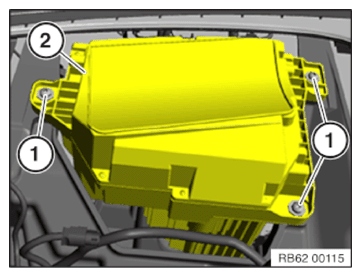

• Guide the Head-Up Display (2) into the support.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INSTRUMENT PANEL TRIM .
• Refer to INSTALLING THE GLOVE BOX LIGHT .
• Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING AUDIO CONTROL UNIT .
• Refer to INSTALLING THE LIGHT OPERATING UNIT .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
• Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
• Refer to INSTALLING THE INSTRUMENT CLUSTER TRIM .
• Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ENCODING/PROGRAMING CONTROL UNIT (S) .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
