Installing the instrument cluster (KOMBI)

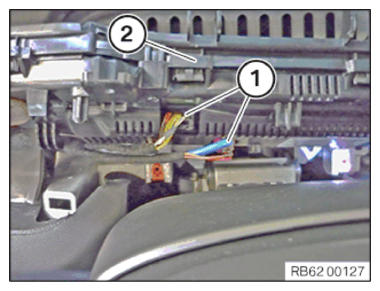

- Connect and lock the connector (1) on the instrument cluster (KOMBI) (2).

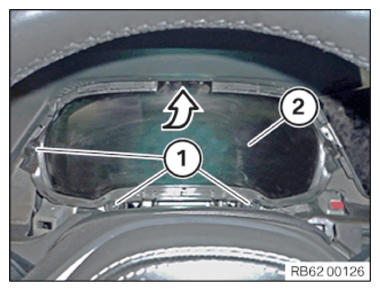

- Guide in the instrument cluster (KOMBI) (2) in the arrow direction.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Instrument cluster (KOMBI) to support | ||
|---|---|---|
| Screw | tightening torque | 1.8 Nm |

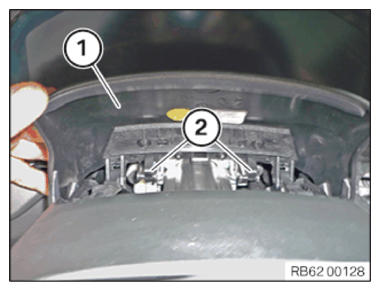

- Position and lock the steering column shroud upper section (1).
The snap-in lugs (2) must snap in audibly.
Follow-up work
- Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
- Refer to INSTALLING THE INSTRUMENT CLUSTER TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
