Installing all pistons with connecting rod

Installing the piston with the connecting rod

Aligning piston rings

Aligning piston rings

Courtesy of BMW OF NORTH AMERICA, INC.

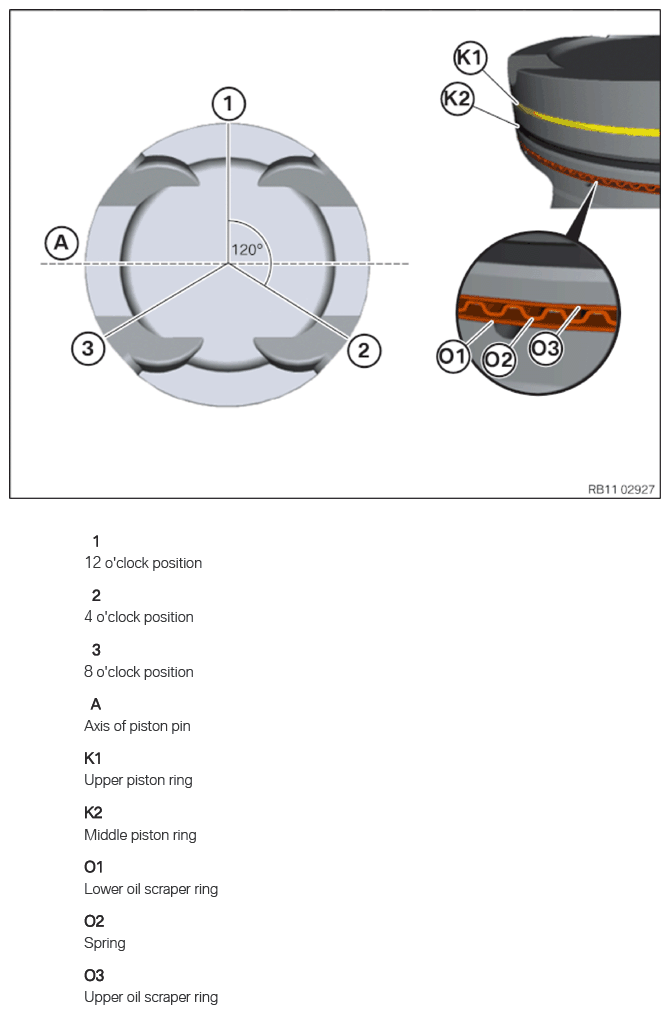

• Align the contact points of all piston rings twisted by 120° each.

  The piston ring gaps must not be positioned in line with the axis of the piston pin (A).

  Piston ring	Alignment
  Lower oil scraper ring (O3)	12 o'clock position (1)
  Spring (O2)	4 o'clock position (2)
  Upper oil scraper ring (O1)	8 o'clock position (3)
  Central piston ring (K2)	12 o'clock position (1)
  Upper piston ring (K1)	4 o'clock position (2)

• Make sure that the spring (O2) does not overlap the piston ring gap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert connecting rod bearing shell (2) at the top in connecting rod (1).
• Apply a light coat of oil to the connecting rod bearing shell (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Coat the pistons (1) and piston rings lightly with oil.
• Insert the piston (1) with the piston rings into special tool (connector) 0 495 373 (11 6 240)  .
• Screw special tool 2 463 755 on at large connecting rod eye (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Align the piston so that the arrow (1) points to cylinder 1.
• Insert the piston with the connecting rod into the special tool 0 495 373 (11 6 240) and guide it into the cylinder.
  NOTE: RISK OF DAMAGE
  Damage on the cylinder wall and oil spray nozzles  .
  A large force can scratch the cylinder wall and bend the oil spray nozzles  .

  • Carefully shift the piston and connecting rod in the engine block.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push in piston by hand with only little force. Do not use striking tools.

Install the lower connecting rod bearing

• Vacuum the connecting rod bearing shell and cracked surface (1) with a vacuum cleaner (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the connecting rod bearing shell (1) into the connecting rod bearing cap (2).
• Apply a light coat of oil to the connecting rod bearing shell (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• If necessary, screw special tool (inlet guide) 2 463 755  into the large connecting rod eye.
• Pull the connecting rod up to the connecting rod bearing journal.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Engine damage caused by incorrectly installed bearing shells and bearing brackets  .
  If the bearing shells and bearing brackets are installed incorrectly, then engine damage can occur  .

  • Always install all bearing shells and bearing brackets in the same position from which they were removed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the connecting rod bearing caps to the connecting rod until the designations (1) match.
• Replace screws (1).

  Parts:  screw

• Tighten the bolts with the special tool 0 490 504 (00 9 120) .

Courtesy of BMW OF NORTH AMERICA, INC.
