Installing the oil deflector
- Replace screws (marks).
Parts: screw

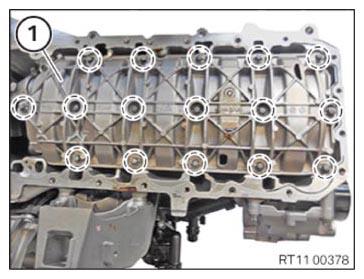

- Guide in and position the oil deflector (1).
- Tighten screws (marks) in crosswise sequence using the special tool 0 490 504 (00 9 120) .
TIGHTENING TORQUE SPECIFICATIONS
| Oil deflector to crankcase | ||
| M8 x 35 Replace screws. |
Joining torque Angle of rotation |
15 Nm 45° |
