Installing the operating facility in the center console

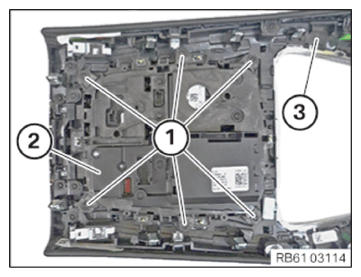

• Position the operating facility in the center console (2) on the center console trim (3) and engage it in the detents.
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BRACKET ON THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
