Installing the carpet on the center console at left and right sides

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the carpet on the side of the center console

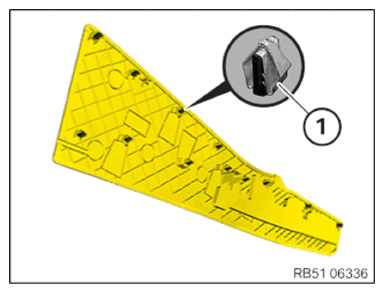

Check all clamps (1) for damage and replace, if necessary.
The clamps (1) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

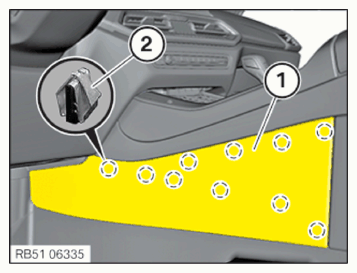

Clip in the carpet at the side of the center console (1) starting from the front at the clamps (2) and install.

Courtesy of BMW OF NORTH AMERICA, INC.
