Installing the window washer pump

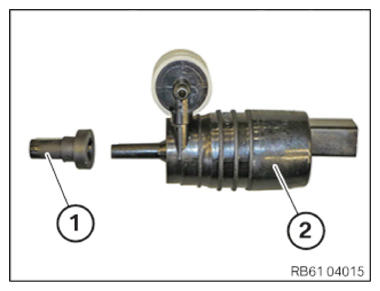

• Check the strainer with the gasket (1) and the window washer pump (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Join strainer with gasket (1) into the washer fluid reservoir (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Join windshield washer pump (1) into washer fluid reservoir (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING WASHER FLUID RESERVOIR .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM (DOOR SILL) .
