Installing washer fluid reservoir

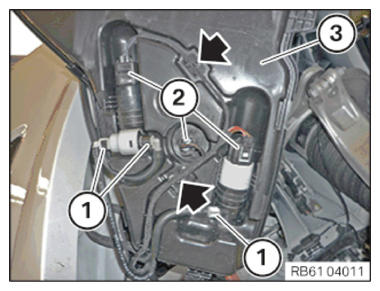

• Position the washer fluid reservoir (3) and connect the connector (2).
• Clip the cable into the washer fluid reservoir (3) (arrows).
• Connect the hose pipes (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

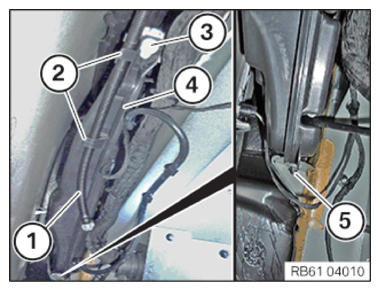

• Feed the washer fluid reservoir (4) into the holder (5).
• Tighten down screw (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Washer fluid reservoir
  Hexagon screw	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

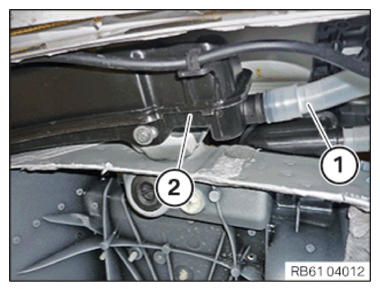

• Clip the hose pipe (1) into the holder (2).
• Correctly position the filler channel (1) and slide it onto the washer fluid reservoir (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM (DOOR SILL) .
