Installing the storage tray for the near field communication

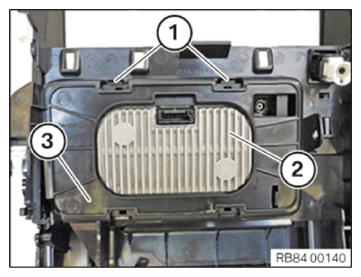

- Position the storage tray (2) and install it in the front storage compartment (3).
The detents (1) must engage correctly.
Follow-up work
- Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
