Install Cover Housing

• Push the cover housing towards the front at an angle into the side panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the plug connection (1).
• Open fuel filler flap.

  Courtesy of BMW OF NORTH AMERICA, INC.

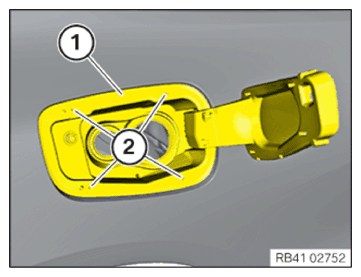

• Clip in the cover housing (1) into the side panel.

  The detents (2) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

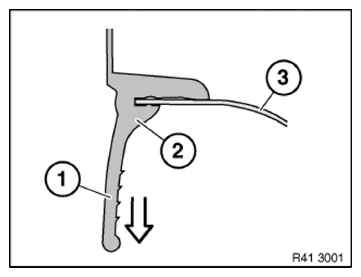

• Using the installation aid (1), pull the sealing lip (2) over the sheet metal flange of the wheel arch (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check the sealing lip (1) is positioned correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Sealing lip (1) does not have uniform contact with the rear quarter panel.

  Measure

  • Check flange (1) on rear quarter panel for damage.

    Straighten flange if necessary.

  Check

• Check the sealing lip (1) is positioned correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The sealing lip (1) is not evenly in contact with the wheel arch.

  Measure

  • Connect the sealing lip (1) to the wheel arch.

Follow-up work

• Refer to PARTIALLY INSTALLING THE FUEL FILLER PIPE .
• Refer to REMOVING THE REAR WHEEL ARCH COVER .
• Refer to MOUNTING THE REAR RIGHT WHEEL .
• Refer to INSTALL THE FUEL FILLER FLAP .
