Partially installing the fuel filler pipe

• Position the fuel filler pipe (4).
• Tighten the nut (3).

  Parts:  Nut.

• Tighten the nut (2).

  Parts:  Nut.

• Clip the tank vent line (1) into the bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

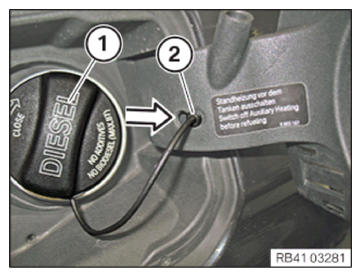

• Close sealing cap (1).
• Insert the retaining strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
