Remove Left Engine Compartment Lid Hinge

Prerequisite

• Vehicle doesn't have active pedestrian protection.

Preliminary work

• Refer to REMOVING THE JET CHAIN PARTIALLY .
• Refer to REMOVE HOOD .
• Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .

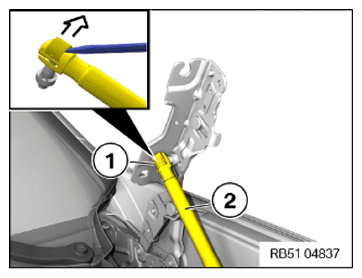

• Open the lock (1) at top and detach the gas pressure spring (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip the cable clip (1).
• Release screws (2) and take off hood hinge (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
