Removing the jet chain partially
Removing the jet chain partially

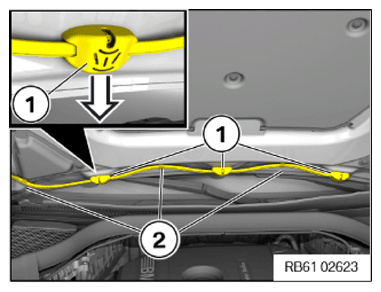

Unclip the spray nozzles (1) bottom from the hood.
Unclip the jet chain from all holders (2) on the hood, and lay to one side.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
