Replace Hood

Prerequisite

• Vehicle doesn't have active pedestrian protection.

Preliminary work

• Refer to REMOVING THE FRONT EMBLEM .
• Refer to REMOVING THE JET CHAIN PARTIALLY .
• Refer to REMOVING THE HOOD STRIKER .

Prerequisite

New part is painted.

• Support the hood.
• Loosen nut (1).
• Release nut (2) and remove hood.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
• Position new hood on hood hinge. Note the existing impressions of the nuts (1) and (2).
• Support the hood.
• Renew nuts (1) and (2).

  Parts: Nuts

• Install the nuts (1) and (2) and tighten them.
  TIGHTENING TORQUE SPECIFICATIONS



  Engine compartment lid to engine compartment lid hinge
  Nut M8 Replace nuts.
  	Tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slowly close the hood and check for bodywork contact, repositioning the hood if necessary.
• Release all clips (arrows) using the special tool 2 298 505 .
• Remove damping layer (1) and install on the new hood.
• Fit all clips.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
• Release the clips (1) with the special tool 2 298 505 and remove the damping layer (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
• Remount the seal plug (1) and (2) on the new hood.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.
• Position the damping layer (2) on the new hood and fasten with clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pull out locking pin (1).
• Remove spacer (2) and install on the new hood,
• Remount the seal plug on the new hood (3),

  Courtesy of BMW OF NORTH AMERICA, INC.

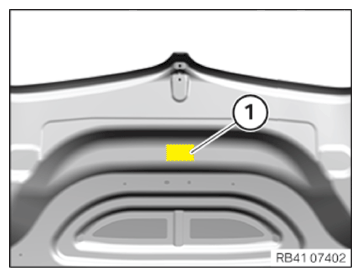

• Renew sign (1) for refrigerant.

  Parts:  Label

• Stick sign on new hood.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING JET CHAIN PARTIALLY .
• Refer to INSTALLING THE FRONT EMBLEM .
• Refer to ADJUSTING HOOD .
• Refer to INSTALLING THE HOOD STRIKER .
• Refer to ADJUSTING ENGINE COMPARTMENT LID CATCH .
