Installing the wiring harness section of Valvetronic servomotor of cylinders 1 to 4

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: 61 35.. NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections. Sheared wires can cause a short circuit.

Do not pull on wires when disconnecting connectors and plug connections.

NOTE: TECHNICAL INFORMATION
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and, if necessary, deleted.

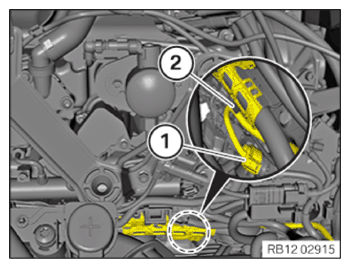

Unlock plug connection (1) and disconnect.
Unclip wiring harness mounting (2).
Remove the wiring harness section of the Valvetronic servomotor of cylinders 1 to 4.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to FASTENING THE POSITIVE BATTERY CABLES .
Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
Refer to INSTALLING THE HOLDER FOR THE DIGITAL MOTOR ELECTRONICS CONTROL UNIT ON THE RIGHT .
Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
Refer to RECONNECTING ALL BATTERY GROUND LEADS .
