Installing wiring harness section for ignition system of bank 1

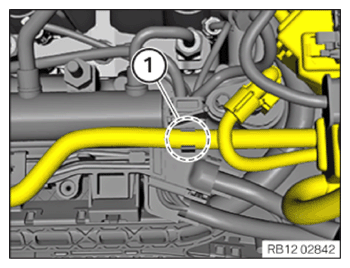

• Clip the ignition wiring harness in the snap-in lug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

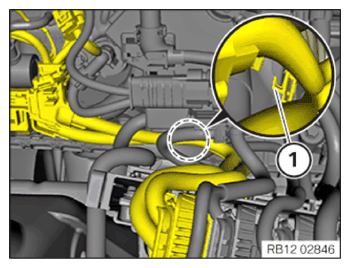

• Connect and lock the ignition wiring harness to the snap-in lug (1).

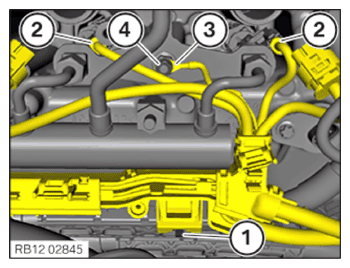

• Position the grounding point (2).
• Tighten nut (4).
• Connect connectors (3) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

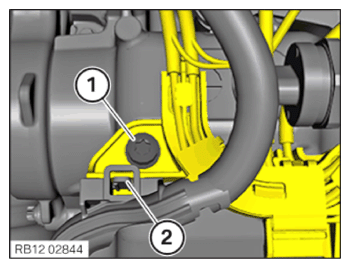

• Connect the transmission wiring harness to the snap-in lug (1) and lock it.
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

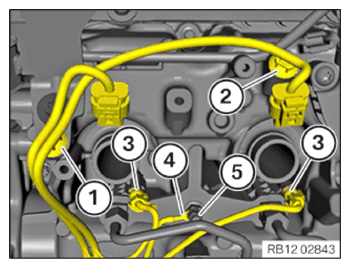

• Position the grounding point (4).
• Tighten nut (5).
• Connect connectors (3) and lock.

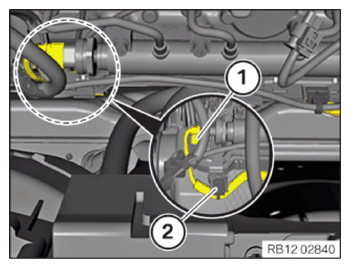

• Clip in the wiring harness mounting (1).
• Clip in the wiring harness mounting (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

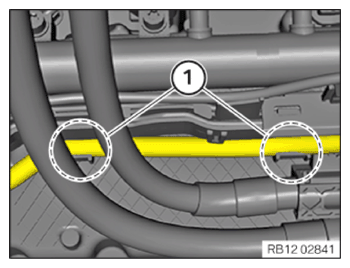

• Clip the wiring harness in at the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the wiring harness at the holders (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.
• Clip in the wiring harness mounting (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
• Refer to INSTALL IGNITION COILS OF CYLINDER BANK 1 .
• Refer to INSTALLING BRACKET FOR RIGHT INTAKE SILENCER .
• Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
