Remove the transmission wiring harness

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE TOP LEFT COVER IN THE ENGINE COMPARTMENT and REMOVE THE TOP RIGHT COVER IN THE ENGINE COMPARTMENT .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING LEFT STRUT BRACE .
Refer to REMOVING THE INTAKE FILTER HOUSING ON THE LEFT .
Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
Refer to REMOVING THE AIR DUCT .
Refer to REMOVING THRUST FIELD .
Refer to REMOVING TRANSMISSION CROSS-MEMBER .

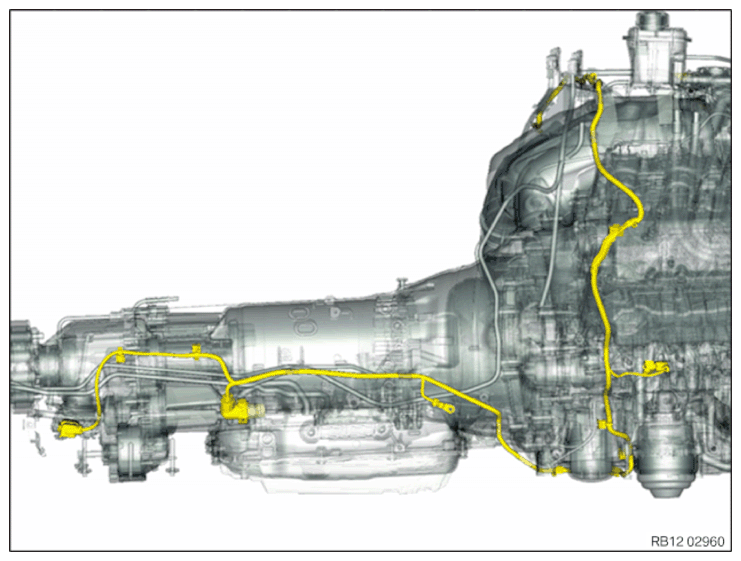

Transmission wiring harness

Courtesy of BMW OF NORTH AMERICA, INC.

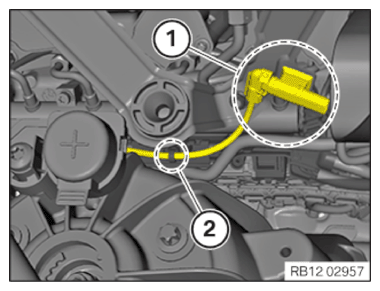

Unlock plug connection (2) and disconnect.
Release the wiring harness mountings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

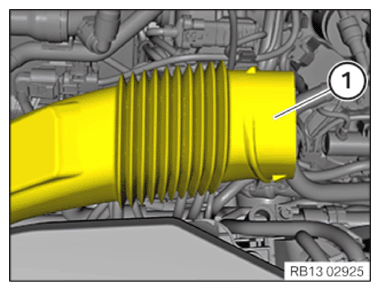

Press the unfiltered-air duct (1) to the side.

Courtesy of BMW OF NORTH AMERICA, INC.

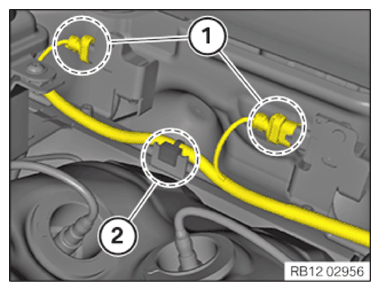

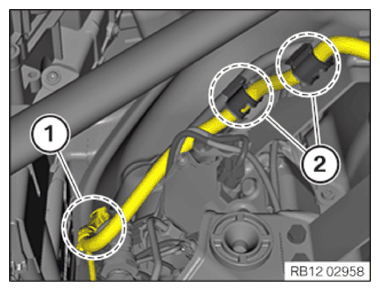

Unlock plug connection (1) and disconnect.
Release the wiring harness mountings (2).

Courtesy of BMW OF NORTH AMERICA, INC.

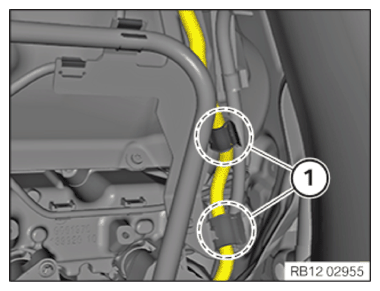

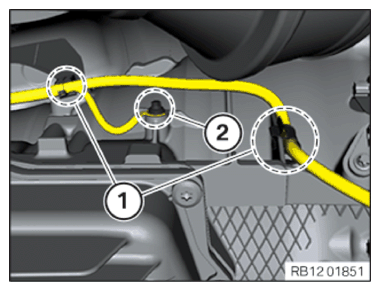

Release the wiring harness mountings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

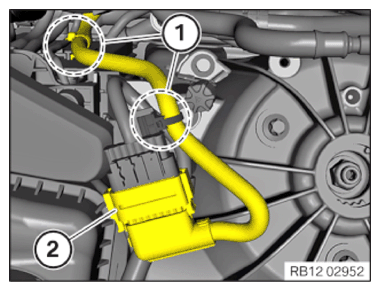

Release the transmission wiring harness from the clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

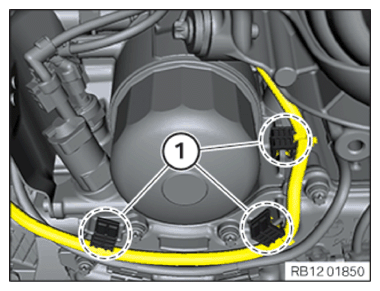

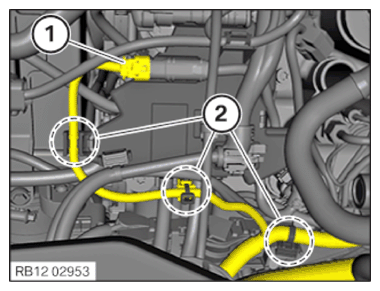

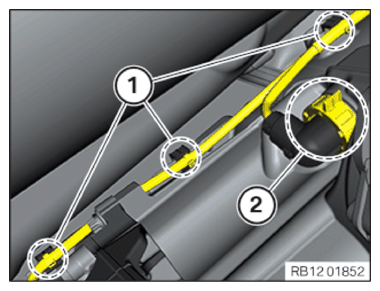

Unlock plug connections (1) and disconnect.
Release the wiring harness mounting (2).

Courtesy of BMW OF NORTH AMERICA, INC.
If installed:
Unlock plug connection (1) and disconnect.
Unclip the connector (1) from the holder for intake silencer.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the transmission wiring harness from the clamps (2).
Disconnect the transmission wiring harness from the wiring harness for the ignition system of cylinder bank 1 in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove transmission cross-member

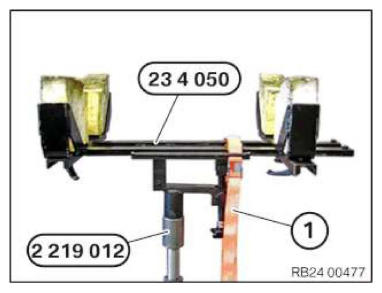

Support the transmission using special tools 0 495 498 (23 4 050) and 2 219 012.
Secure the transmission with the luggage strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

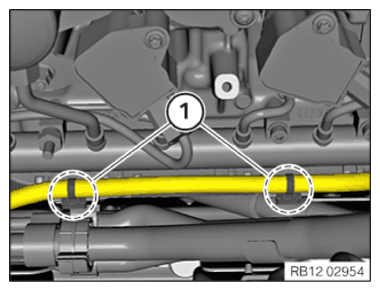

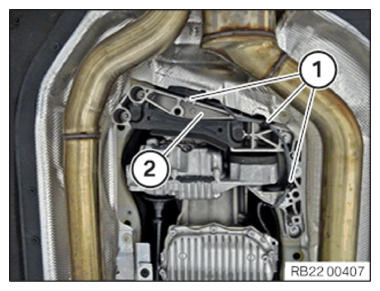

Release clamps (1).
Hang line on one side.

Courtesy of BMW OF NORTH AMERICA, INC.

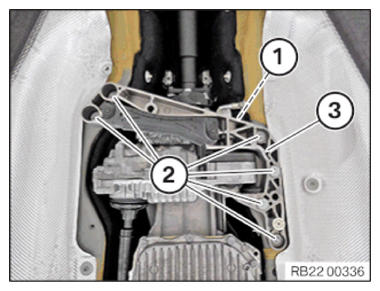

Loosen screw (1) and remove.
Loosen screws (2).
Remove the transmission cross member (3).

Courtesy of BMW OF NORTH AMERICA, INC.

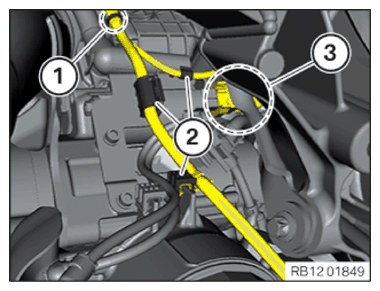

Disconnect cable tie (1).
Unlock plug connection (3) and disconnect.
Disengage latch mechanisms of the transmission wiring harness (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Disengage latch mechanisms of the transmission wiring harness (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Disengage latch mechanisms of the transmission wiring harness (1).
Loosen screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Disengage latch mechanisms of the transmission wiring harness (1).
Turn connector with bayonet fitting (2) counterclockwise and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

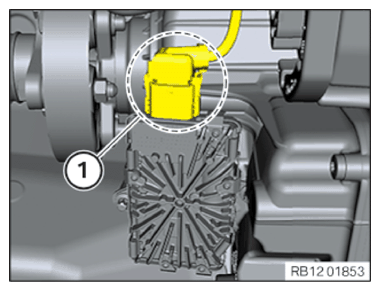

Unlock plug connection (1) and disconnect.
Detach transmission wiring harness.
