Removing the air duct

Release screws (1).
Remove air duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

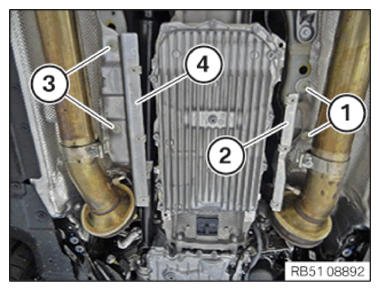

Loosen nuts (1) and (3).
Remove retaining plates (2) and (4).

G15175671

Courtesy of BMW OF NORTH AMERICA, INC.
