Installing the camshaft position sensor of the right exhaust camshaft
- Check the O-ring (1) for damage and replace if necessary.
- Coat sealing ring (1) with lubricant.

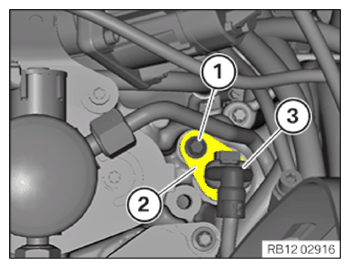

- Guide in and install camshaft position sensor (2) of the right exhaust camshaft.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Camshaft position sensor | ||
|---|---|---|
| M6x16 screw | Tightening torque | 8 Nm |
- Connect connectors (3) and lock.
The connector (3) must engage audibly.
Follow-up work
- Refer to INSTALLING BRACKET FOR RIGHT INTAKE SILENCER .
- Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
