Remove hydraulic unit
Preliminary work
- Refer to INSTALLING BRAKE PEDAL TENSIONER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING COOLANT EXPANSION TANK .
- Refer to REMOVING LEFT FRONT-END STRUT .

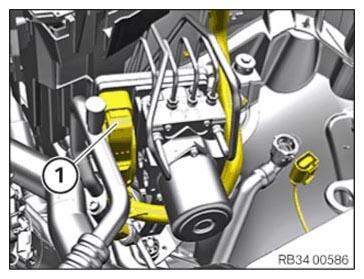

- Disconnect plug connection (1).NOTE: TECHNICAL INFORMATION
Do not interchange brake lines. If necessary, mark the brake lines before disassembly.
Note various equipment specifications with different line seizure.
Do not bend brake lines.

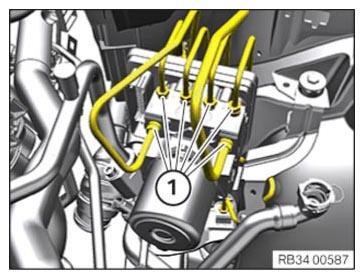

Close off connecting bores with seal plugs. - Unfasten brake lines (1).

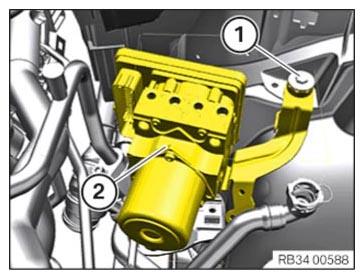

- Loosen the screw (1) and remove the hydraulic unit (2).
