Install the DSC control unit

• Carefully attach the DSC control unit (5)  to the hydraulic unit.
• Replace screws (1)  to (4)  .

  Parts:  Screws

• Tighten the screws (1)  to (4)  step by step in this sequence.
  TIGHTENING TORQUES SPECIFICATIONS



  DSC control unit on hydraulic unit
  Screw Replace screws.	Screw in screws and evenly tighten crosswise.	1. tightening torque	1.5 Nm
  		2. tightening torque	2.5 Nm
  		Position the 3rd tightening torque	3.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

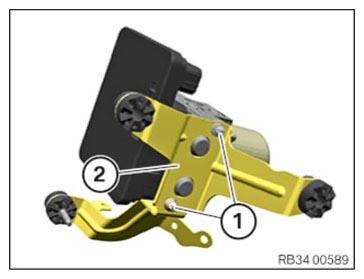

• Install holder (2)  .
• Insert screws (1)  and tighten.
  TIGHTENING TORQUES SPECIFICATIONS



  Hydraulic control unit to holder
  M6 Replace screws.	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HYDRAULIC UNIT .
• Refer to INSTALLING THE LEFT FRONT-END STRUT .
• Refer to INSTALLING COOLANT EXPANSION TANK .
• Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE BRAKE PEDAL TENSIONER .
• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to CONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to FLUSH AND VENTING THE REAR AXLE BRAKE CIRCUIT .
• Refer to FLUSH AND BLEEDING THE FRONT AXLE BRAKE CIRCUIT .
• Refer to DISCONNECTING THE BLEEDER UNIT FOR THE BRAKE FLUID .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to DSC UNIT START-UP/DRIVING DYNAMICS SENSOR ADJUSTMENT/CONTROL UNIT PROGRAMMING .
