Install brake guard plate, front

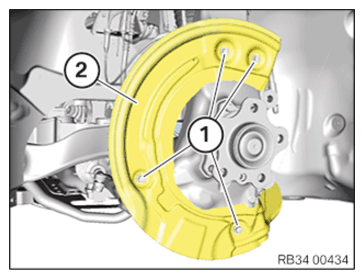

- Install brake guard plate (2) .
- Replace screws (1)
.
Parts: Screws
- Insert screws (1)
and tighten.TIGHTENING TORQUES SPECIFICATIONS
Brake guard plate at front swivel bearing M6x12 Replace screw. tightening torque 8 Nm
Follow-up work
- Refer to INSTALLING THE FRONT BRAKE DISC CHAMBER .
- Refer to GREASE BRAKE PADS, BRAKE ANCHOR PLATE AND BRAKE CALIPER WITH BRAKE PAD PASTE .
- Refer to INSTALLING FRONT PADS .
- Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to COMMISSIONING OR BEDDING IN (BRAKE) OF NEW BRAKE PADS AND DISCS .
