Installing the front brake pad wear sensor

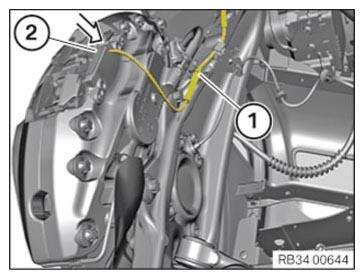

• Hook the cable of the brake pad wear sensor (2) to the holder (1).
• Install the brake pad wear sensor (2) in the direction of arrow in the brake pad and ensure its correct fit.

  Courtesy of BMW OF NORTH AMERICA, INC.

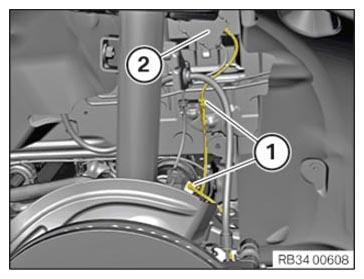

• Hook the cable of the brake pad wear sensor to the holders (1).
• Connect connectors and lock.
• Close sealing cap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE FRONT LEFT WHEEL .
