Installing the front brake discs

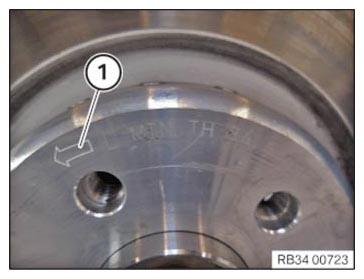

• If an arrow 1 is stamped on the brake disk, it must point in the driving direction!

  In this case, the left and right brake disks are different!

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean contact surface of wheel hub thoroughly and remove any traces of rust if necessary.

  Irregularities in the contact surface can cause distortion in the brake disc!

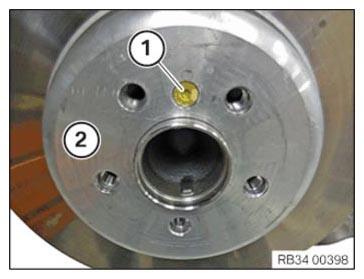

• Mount brake disc (2).
• Position and tighten the screw (1).
• Replace screw.

  Parts:  Screw

  TIGHTENING TORQUES SPECIFICATIONS



  Brake disc to front wheel hub
  M8 Replace screw.	Tightening torque	16 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to GREASE THE BRAKE PADS, THE BRAKE ANCHOR PLATE AND THE BRAKE CALIPER WITH THE BRAKE PAD PASTE .
• Refer to INSTALLING FRONT BRAKE PADS .
• Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to COMMISSIONING/BEDDING IN (BRAKE) NEW BRAKE PADS AND BRAKE DISCS .
