Installing the positive battery cable from the starter motor to the auxiliary terminal for jump starting

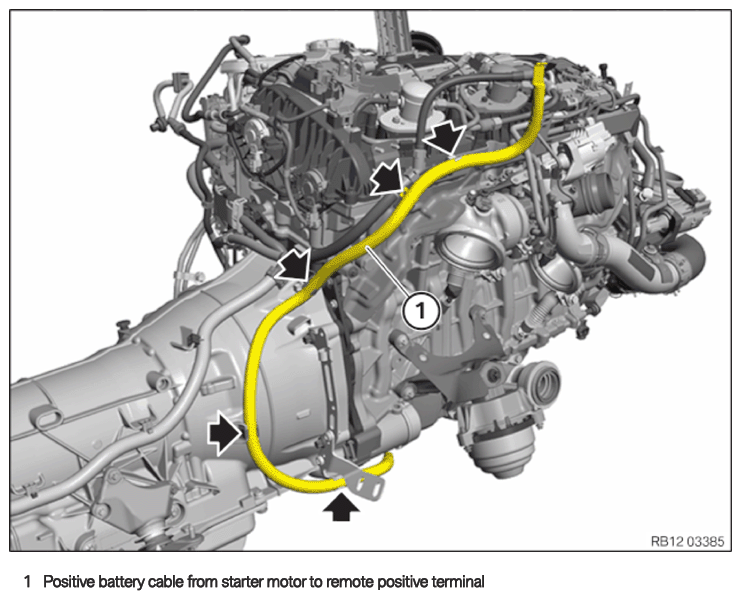

Positive battery cable from the starter motor to the remote positive terminal
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
- Insert and install the positive battery cable (1)
.
- Guide positive battery cable (3) into the holder (arrow).
- Guide positive battery cable (3) into the starter motor.
- Hand-tighten the nut (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
NOTE:
Schematic diagram is for example purposes.
Some parts may differ in certain details.
Some parts may differ in certain details.
- Attach the positive battery cable (1) correctly to anti-twist lock (2) .
- Tighten nut (3) .
TIGHTENING TORQUES SPECIFICATION
| Battery positive lead to starter | ||
|---|---|---|
| M8 | Tightening torque | 13.4 Nm |
- Feed the positive battery cable (1) into the holder (arrows) and install it.
- Install the retaining plate (2) .
- Replace nuts (1)
.
Parts: Nuts
- Tighten nuts (1) .
TIGHTENING TORQUES SPECIFICATION
| Retaining plates for underbody cover | ||
|---|---|---|
| Sheet metal nut/plastic nut Replace nuts. |
Tightening torque | 3 Nm |
- Feed the positive battery cable (1)
into the holder (arrow) and install it.
- Feed the positive battery cable (2) into the holder (arrows) and install it.
- Tighten nut (1) .
TIGHTENING TORQUES SPECIFICATION
| Battery positive lead to battery positive terminal | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 4-6 .
- Refer to INSTALLING RIGHT AIR DUCT .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
