Install rear spoiler

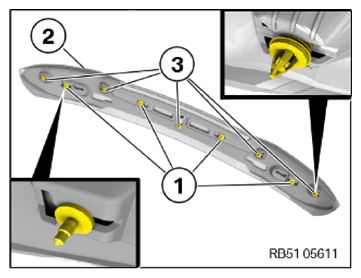

• Check the threaded bolts (1)  and the clips (3)  on rear spoiler (2)  for damage; replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

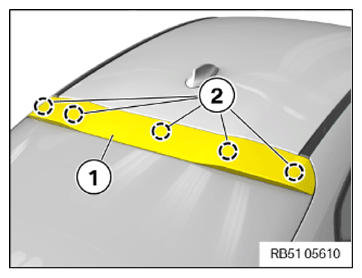

• Position rear spoiler (1)  and clip in with clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

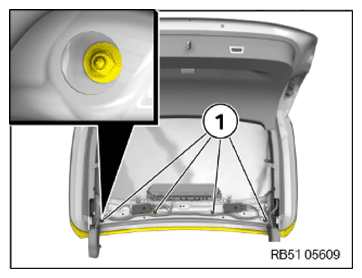

• Tighten nuts (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BOTH TRIM PIECES FOR THE REAR WINDOW FRAME .
• Refer to INSTALLING THE TOP TRIM FOR THE REAR WINDOW FRAME .
• Refer to INSTALLING THE REAR STORAGE SHELF .
